Dosing system full scale compact water treatment plant

Compact Package Water Treatment Plant with Integrated Dosing System for Full-Scale Purification

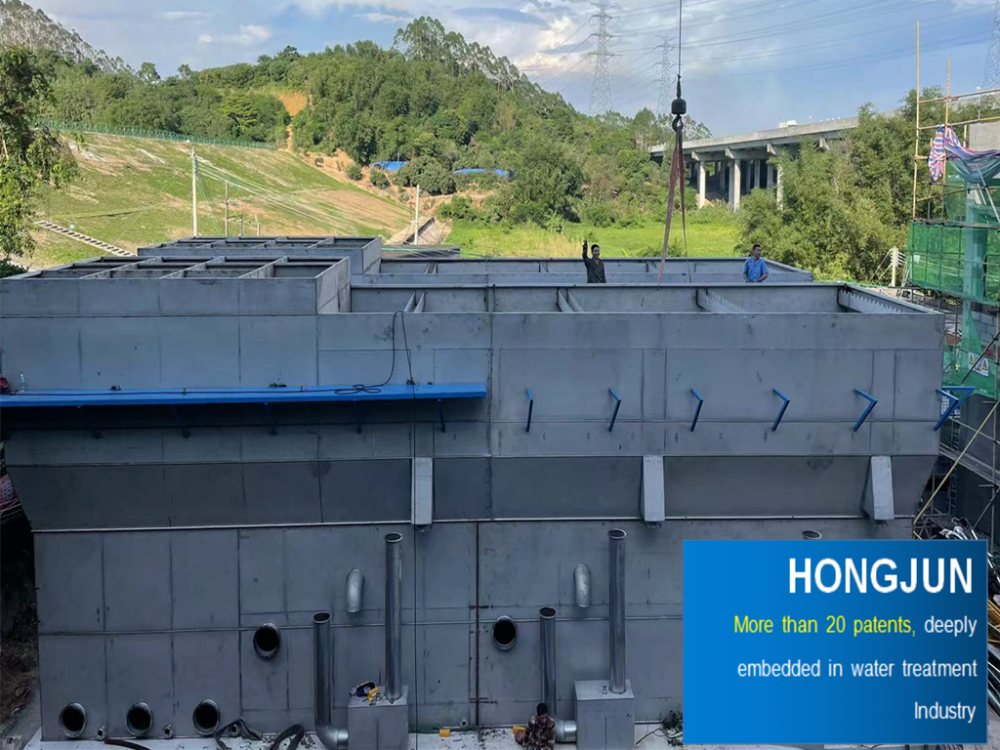

This advanced, fully automatic water purification solution offers an efficient and scalable approach to treating raw water sources—ideal for municipal, industrial, and commercial applications worldwide. Designed as a complete turnkey system, it integrates coagulation, sedimentation, filtration, disinfection, and automated backwashing into one compact unit, ensuring consistent high-quality potable water output. With a capacity range from 25 to 250 cubic meters per hour, this modular plant adapts seamlessly to diverse operational needs while maintaining optimal performance and minimal maintenance.

The system begins with intelligent chemical dosing: based on real-time turbidity readings, a precision dosing device uniformly introduces coagulants into the influent stream, initiating effective floc formation. This is followed by rapid settling in a dedicated chamber where suspended solids and colloidal particles aggregate into larger flocs, enabling efficient solid-liquid separation—reducing downstream filter load and conserving backwash water. The filtered effluent then passes through a multi-media filter bed composed of 4–7 distinct media layers, achieving a final turbidity of just 0.4–1 NTU, with over 98% particle removal efficiency. Disinfection is handled via on-site generation of sodium hypochlorite using electrolytic technology—a safe, reliable, and chemical-free method that ensures microbial safety without residual odor or taste. Finally, the clean water is stored in a dedicated tank ready for distribution.

Key features include automatic backwash cycles triggered by rising head loss across the filter media, eliminating manual intervention. Backwash intensity ranges between 8–66 liters per second per square meter, with cycle durations of 3–6 minutes—optimized for maximum cleaning effectiveness and minimal water waste. All components are engineered for durability, corrosion resistance, and ease of operation, making this system suitable for remote or low-skilled environments. Its compact footprint (up to 13.5m x 3.6m x 6.5m) allows installation in confined spaces, while modular design supports future expansion. Ideal for regions facing intermittent water quality issues, this system provides consistent, compliant drinking water even under variable raw water conditions.

Applications span small towns, rural communities, construction sites, food processing plants, hotels, hospitals, schools, and emergency response units globally. Whether used for primary treatment or as part of a larger water infrastructure project, this package plant delivers reliable results with minimal environmental impact. It meets international standards for potable water production and is especially suited for areas lacking access to centralized utilities or where traditional treatment methods are impractical.

Users have praised its simplicity, robustness, and ability to produce consistently clear water despite fluctuating source quality. Many appreciate how the integrated automation reduces labor requirements and improves operational consistency compared to older, manually operated systems. Feedback also highlights the system’s adaptability across different climates—from arid zones requiring efficient water reuse to humid regions needing strong disinfection protocols.

Frequently asked questions often center around maintenance intervals, which vary depending on raw water quality but typically involve quarterly inspections and annual media replacement. Another common query concerns energy consumption—this system operates efficiently with low power draw due to smart control logic and optimized pump usage. Installation typically requires only basic civil work and connection to power and inlet/outlet piping, with commissioning completed within days rather than weeks.
