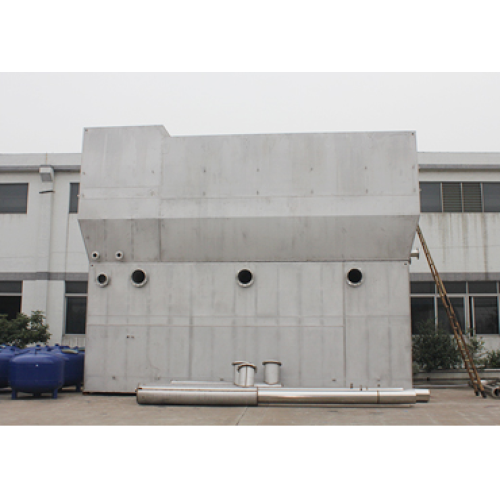

Integrated Tap Water Treatment Plant

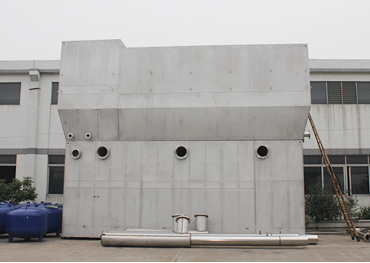

Automatic Valveless Gravity Sand Filter for Tap Water Treatment – Efficient, Low-Maintenance Water Purification Solution This advanced automatic valveless gravity sand filter is engineered for seamless integration into municipal, industrial, and commercial water treatment systems. Designed to operate without manual intervention or mechanical valves, it leverages hydraulic principles to ensure continuous, reliable filtration of raw water sources such as surface water, groundwater, and recycled effluent. The system's compact design eliminates the need for complex piping or external control units—simply connect inlet and outlet lines, and the unit begins operation immediately. With its self-contained structure, including a water tank, filtration chamber, and backwash reservoir, this integrated solution offers high efficiency, minimal maintenance, and exceptional durability in both indoor and outdoor environments. Key Features: - Fully automatic operation via hydrodynamic siphon action—no electricity or valves required - Compact footprint with top-mounted cover for weather resistance and easy access - High-efficiency sand media bed that captures suspended solids effectively - Self-regenerating backwashing cycle triggered by pressure differential - Suitable for turbidity levels up to 3000 NTU, ideal for pretreatment before softening, desalination, or reuse applications Detailed Operation: Raw water enters the system through a distributor box and flows downward through a layered sand filter bed. As particles accumulate on the surface and within the media, hydraulic resistance increases, raising the water level inside the siphon tube. Once the liquid reaches a critical height, air is drawn out through a venturi effect in the auxiliary pipe, creating negative pressure that initiates a full siphon. This causes reverse flow from bottom to top, flushing accumulated contaminants out of the filter bed—an automated regeneration process that requires no operator input. When the water level drops below the siphon break point, the cycle ends automatically, and normal filtration resumes. This closed-loop mechanism ensures consistent performance with minimal energy consumption and zero mechanical wear. Ideal Applications: - Municipal waterworks for community supply from rivers, lakes, or reservoirs - Industrial cooling tower side-stream filtration in power plants, refineries, and manufacturing facilities - Pre-treatment for desalination, ion exchange, or reverse osmosis systems - Iron and manganese removal from groundwater sources - Swimming pool and decorative fountain water recirculation systems - Wastewater reclamation projects where secondary clarification precedes final filtration User Feedback Highlights: Users consistently praise the system’s simplicity, reliability, and low operational cost. Many report significant reductions in downtime due to the absence of moving parts or electrical controls. Operators appreciate the ease of installation—often completing setup in under an hour—and the long intervals between required inspections. In harsh environments like mining operations or textile plants, the robust construction and corrosion-resistant materials have proven effective over extended periods without degradation. Common Questions: How does the siphon work without valves? The system uses natural hydraulic forces: rising water levels create negative pressure when air is evacuated from the siphon line, initiating automatic backwash. No valves or pumps are needed. What is the recommended influent turbidity? For optimal performance, feed water should not exceed 3000 NTU; typical applications range from 50–150 mg/L suspended solids depending on use case. Can it handle high flow rates? Yes—design flexibility allows customization for various capacities, from small-scale village systems to large industrial installations. Is maintenance required? Minimal. The self-cleaning cycle reduces fouling, but periodic inspection of the sand bed and siphon components is advised every 6–12 months. This valveless gravity filter stands out as a sustainable, intelligent choice for modern water purification needs worldwide. Whether purifying drinking water, supporting industrial processes, or enabling environmental conservation through reuse, it delivers dependable results across diverse settings—from urban utilities to remote agricultural zones.
