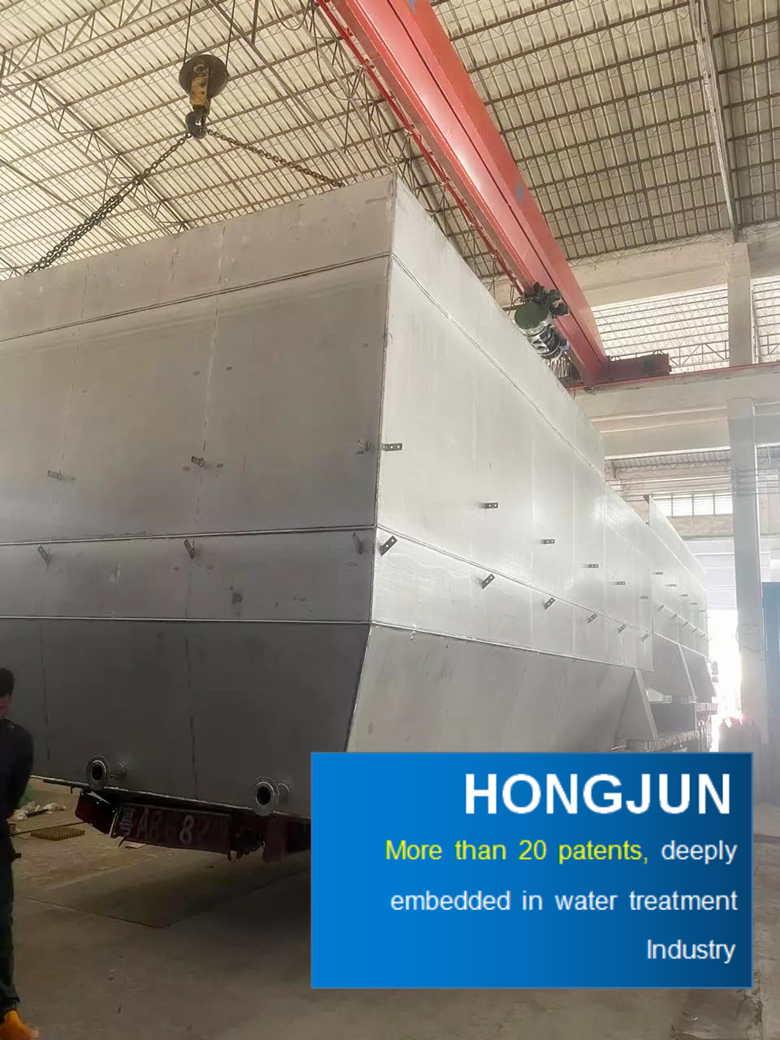

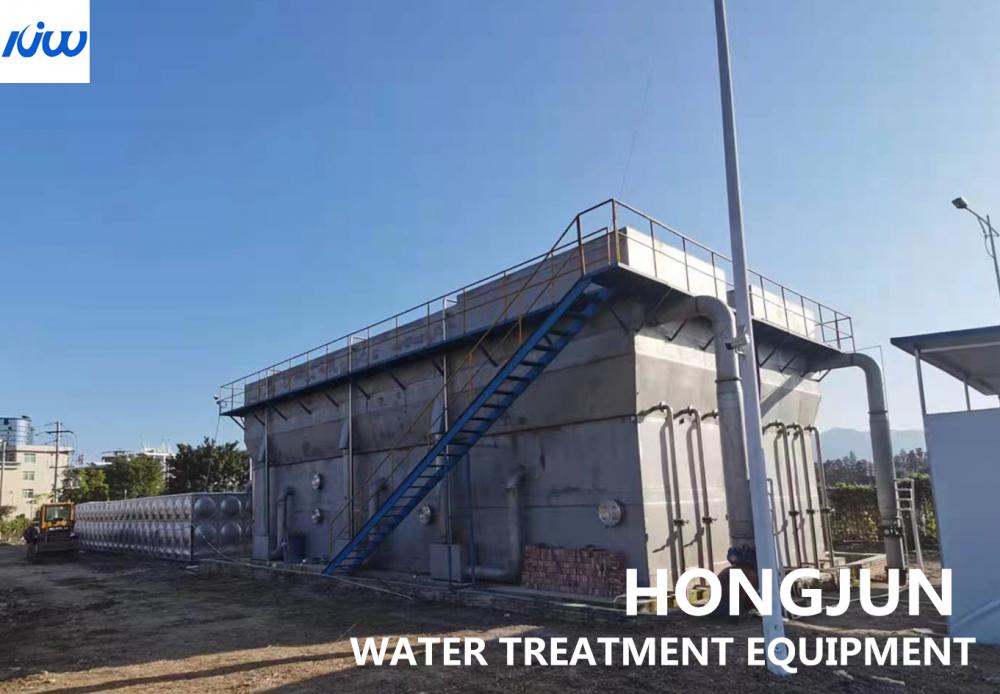

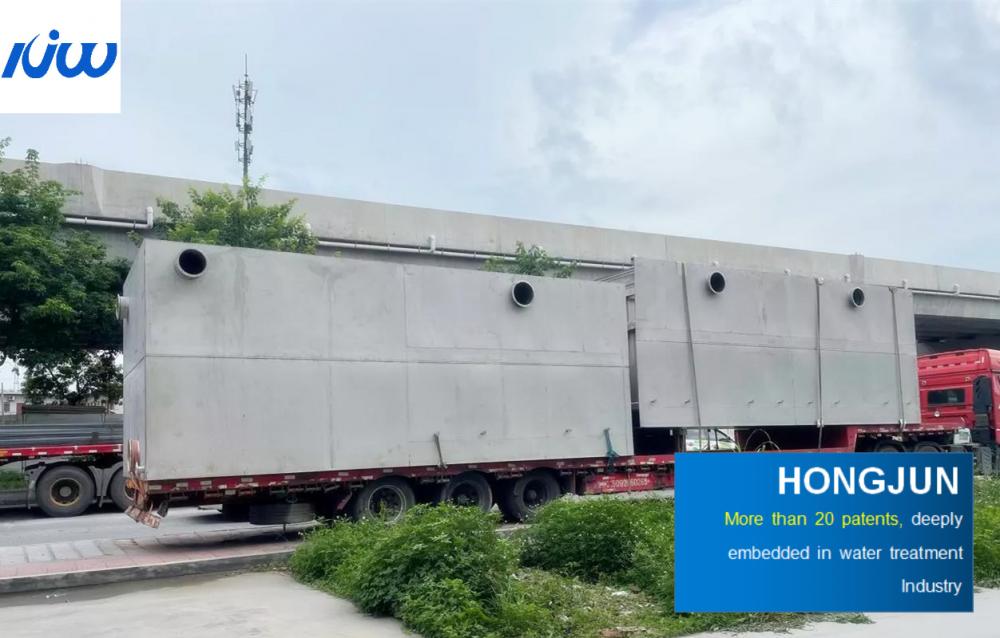

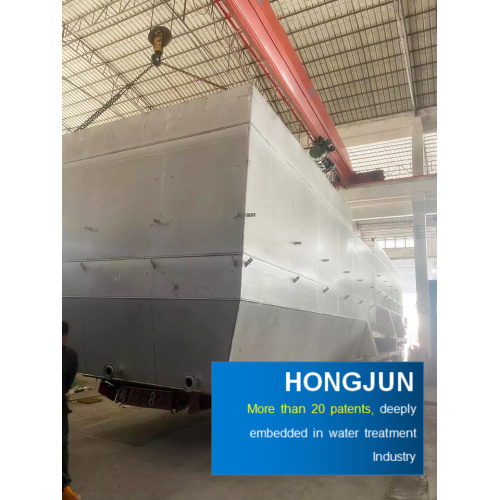

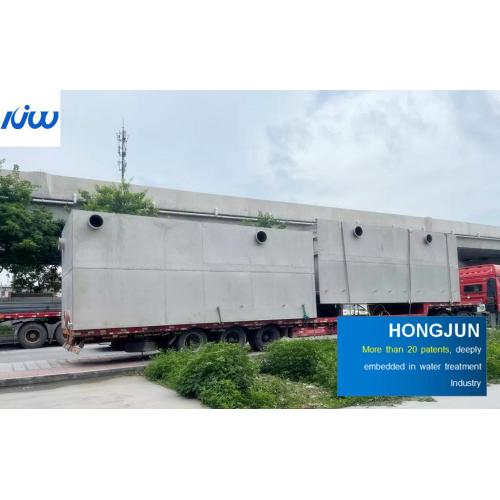

Water purification coagulation and sedimentation device

Automatic Valveless Gravity Filter for Water Purification – Integrated Coagulation and Sedimentation System

Experience reliable, high-efficiency water treatment with our advanced Integrated Water Purifier, designed for municipal supply systems, industrial applications, and small-to-medium-sized water plants worldwide. This automatic valveless gravity filter combines coagulation, flocculation, sedimentation, and filtration into one seamless unit—delivering consistent, potable water without manual intervention. Engineered for durability and performance, it ensures stable water quality by eliminating turbidity, suspended solids, sand, and silt from raw water sources.

Key features include a fully automated control system that manages dosing, distribution, sludge removal, backwashing, and wastewater discharge—eliminating human error and ensuring optimal operation 24/7. The device uses gravity-driven flow through a specially designed U-shaped distributor and top-down filtration media to maximize particle capture while minimizing energy consumption. With no moving parts requiring frequent maintenance, this system offers long-term cost savings and minimal downtime.

The core mechanism begins with raw water entering the mixing chamber where chemical agents like alum or ferric chloride are automatically injected for effective coagulation. The resulting flocs then move into the clarifier tank, where they settle under controlled hydraulic conditions before passing through a multi-layer filter bed—typically composed of anthracite, sand, and gravel. Clean water flows upward through the filter media and collects in the storage tank, ready for distribution or disinfection. As the filter media becomes clogged, the system initiates automatic backwash cycles using reclaimed water from the clean tank, maintaining continuous operation without interruption.

This integrated water purification solution is ideal for communities, factories, mining operations, agricultural facilities, and remote villages seeking safe drinking water with minimal staffing needs. Whether you're managing a public utility or an on-site water treatment station, this self-regulating unit provides the foundation for a fully autonomous water plant. When paired with chlorine dosing units, UV sterilizers, or ozone generators, it transforms into a complete water purification station capable of meeting WHO standards for potable water.

Users report significant improvements in water clarity, reduced operational costs, and enhanced reliability compared to traditional manual filters. Many operators appreciate how the system’s intelligent controls prevent overuse of chemicals and reduce environmental impact through efficient sludge management. Its compact footprint makes installation easy even in space-constrained environments, while robust materials ensure longevity in harsh climates.

Common questions often revolve around maintenance intervals—most users find that annual inspection and semi-annual media replacement are sufficient for peak performance. Another frequent inquiry involves compatibility with different water qualities; the system handles both surface water and groundwater effectively when properly configured. For those concerned about automation reliability, the built-in sensors and fail-safe mechanisms provide peace of mind, allowing remote monitoring via optional digital interfaces (not included).
