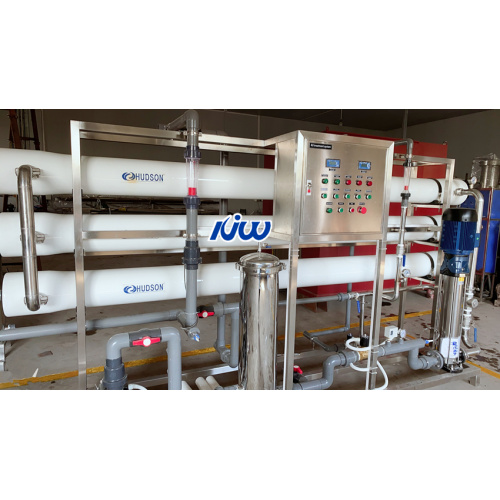

Reverse Osmosis Pure Water Machine

Reverse Osmosis Pure Water Machine

RO Pure Water System

Reverse Osmosis Water Filter

Reverse Osmosis Filter System

Working Process:

1. Raw water pump-- provide the pressure to quartz sand filter/active carbon filter.

2. Quartz sand filter--get rid of turbidity, suspended matter, organic matter, colloid, ect.

3. Active carbon filter--Remove the color, free chloride, organic matter, harmful matter, ect.

4. Softener resin --exchange "ions" of calcium and magnesium with the most common and easiest method.

5. Micron filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um,

6. High pressure pump--Provide the high pressure to RO membrane ro.

7.RO system-- main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions.

8.UV sterilizer-In the UV disinfection process, water is purified as it runs through a stainless steel chamber that contains a special UV- producing lamp.

Our advantages:

1. Rate of desalination up to 98%~99%

2. Pure water obtaining rate is up to 75%

3. Continuously purifying water for 24 hours

4. PLC control automatic flushing function.

5. Optional UV sterlilizer & Ozone generator

6. Low operating cost and long life span.
