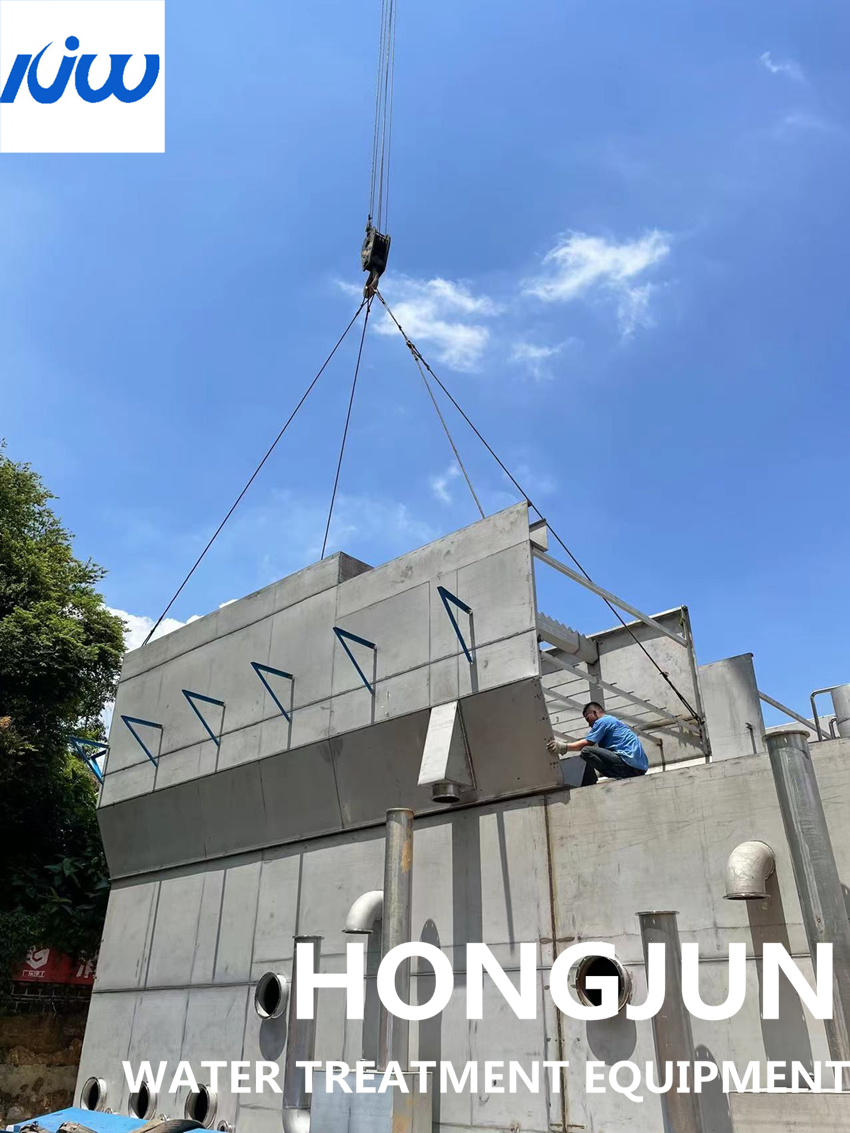

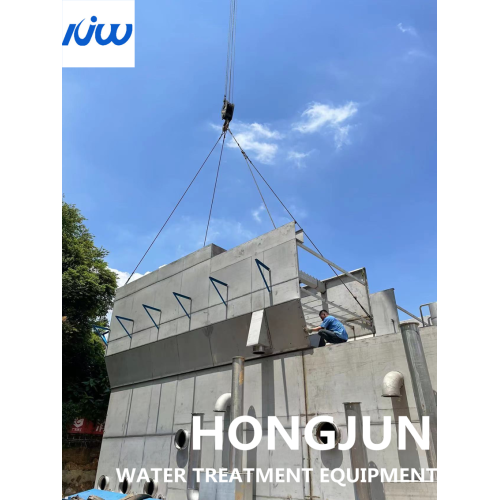

surface compact filtration river water treatment plant

A surface compact filtration river Water Treatment Plant is a facility designed to clean and purify river water for human consumption and other uses. The plant uses a compact filtration system to remove impurities and contaminants from the water, making it safe and suitable for drinking, irrigation, and industrial processes.

The compact filtration system typically includes processes such as sedimentation, coagulation, flocculation, and filtration to remove suspended particles, bacteria, viruses, and other pollutants from the river water. The treated water is then disinfected to ensure it meets regulatory standards for safe drinking water.

Surface compact filtration plants are often used in areas where access to clean and safe water is limited, and they play a crucial role in providing communities with a reliable and sustainable source of water. These plants are also important for protecting the environment by reducing the impact of pollutants on river ecosystems.

1, Applicable scope

The integrated fully automatic water purification equipment adopts physical filtration methods, integrating coagulation sedimentation, aeration, dissolved oxygen, multi-layer filtration, automatic backwashing, automatic sewage discharge, automatic control and other process technologies, effectively removing suspended solids, sediment, algae, organic matter, carbon dioxide, iron and manganese ions, etc. in water. The equipment's water purification process does not require manual intervention, and the operation and maintenance are simple and convenient. Suitable for various types of water plants, surface water treatment, rural domestic water, river water drinking purification, etc.

Applicable water quality range

The integrated fully automatic water purification equipment is suitable for Class I, II, and III river water, mountain spring water, reservoir water, pond water, groundwater, etc. with raw water turbidity<3000NTU; After treatment, it meets the relevant water quality indicators of GB5749-2022, the Hygienic Standards for Drinking Water; Can be used as pre-treatment equipment for high-purity water, beverage industry water, boiler water, etc.

2, Purification treatment process design

Integrated fully automatic water purification equipment purification process

1. Coagulant dosage:

According to the turbidity of the raw water, use a dosing device to evenly mix the coagulant into the pipeline mixer.

2. Coagulation and sedimentation:

Suspended solids and colloidal particles in water generate coarse alum flowers for automatic precipitation, achieving solid-liquid separation, reducing the burden of filtration, and saving backwash water consumption.

3. Filtering:

The residual small alum flowers are intercepted by the filter layer, resulting in a turbidity of 0.4~1 NTU in the effluent;

The filter layer is composed of 4-7 different media filter media, which can trap solid particles in the filter layer and achieve a cleaning rate of over 98%.

4. Disinfection:

After being disinfected by an electrolytic sodium hypochlorite generator, it flows into a clean water tank.

5. Automatic backwashing:

The increase in the interception capacity of the filter layer causes the water level to rise. When the design requirements are met, a bottom-up backwash is carried out, and the filtration is automatically restored after the flushing is completed.

The backwash water is provided by the filter water tank, with a backwash strength of 8-66l/s · m ², The recoil takes 3-6 minutes.
